Flowrate at 43.5psi: 600cc Gasoline, 550cc N-Heptane

Quantity: Four (4)

Type: Bosch EV14

Length o-ring to o-ring: 48mm (short)

Inlet diameter: 11mm (small)

Inlet O-Rings: Buna-N (included)

Manifold seals: Buna-N (included)

Connector: your choice of EV6 clips or wireless USCAR to OBD2 adapters

Fits: Honda S2000 F20C & F22C; select the 11mm option for 2000-2005 models; select the 14mm option for 2006-2009 models

Warranty: 1 year replacement

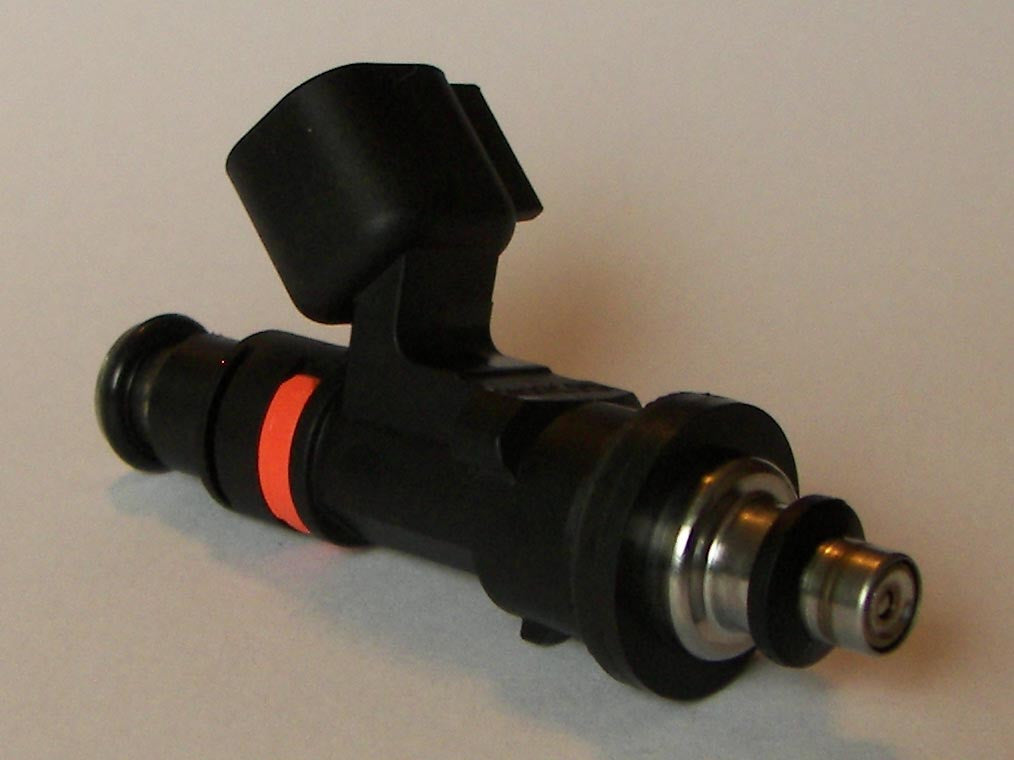

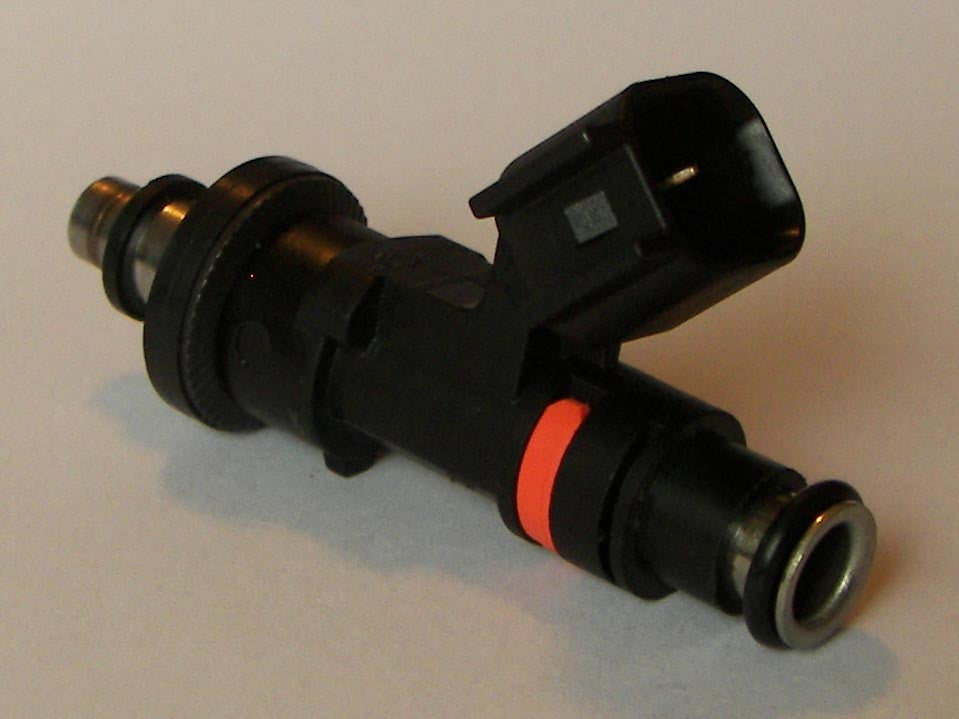

The IN600 fuel injector uses a 6-hole atomizer plate to create two spray cones spread apart at a 20 degree angle, each cone is 17 degrees wide. NOTE: the atomizer plate is rotated 45 degrees, requiring the connector to be rotated 45 degrees towards the passenger side of the car. They will work in other positions, but not as efficiently. Each injector will come with new inlet o-rings. These come with additional washers & seals specifically for the S2000 intake manifold. All injector sets are balanced to +/- 1% at static and dynamic flow rates.
